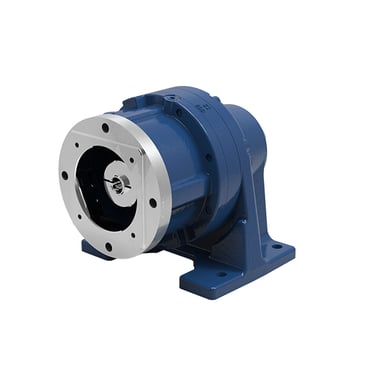

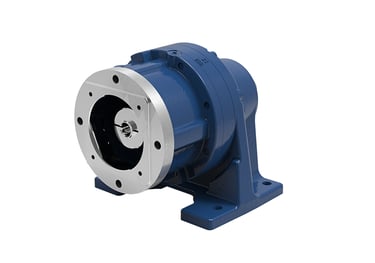

Servo Cyclo®

Power Meets Precision, Every Revolution

Explore the precision and efficiency of the Cyclo Inline Servo Gearbox. Designed for seamless integration and optimal performance in demanding applications, this servo gearbox offers unmatched durability and control. The Cyclo® technology, coupled with innovative product options and accessories, offers the most extensive range of application solutions available.

• 500% Momentary Shockload

• Available with Standard Backlash or Low Backlash

Torque

Up to 603,000 Ib•in (68,130 N•m)

Output Diameter

1/2in to 7in (Solid Shaft)

Ratio Range

3:1 up to 658,503:1

Input Speed

1/2in to 7in (Solid Shaft)

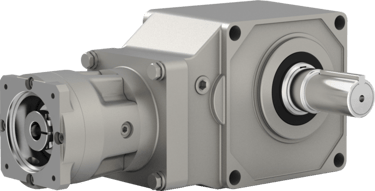

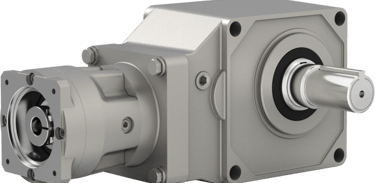

Servo Hyponic® Gearbox:

Quiet Strength, Compact Efficiency

This right angle servo gearbox features a compact, modular housing and a gear efficiency of up to 93% across all ratios.

• Maintenance-free grease lubrication

• A variety of industry packages and options are available, including grease lubrication, antibacterial coating, waterproofing, and low-temperature requirements.

• Clamp Ring Input

Torque

Up to 1,480 N•m (13,100 Ib•in)

Output Diameter

3/4in to 2in

Ratio Range

5:1 up to 1,440:1

Input Speed

Up to 3,600 RPM

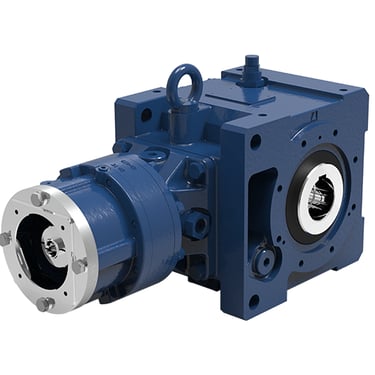

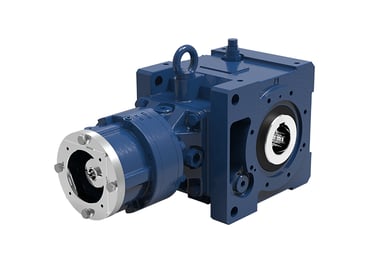

Servo Bevel BuddyBox® 4 Gearbox:

Maximizing Torque, Optimizing Control.

The Cyclo BBB4 Servo Gearbox is a right angle servo gearbox with all-steel internal construction, Cyclo® or planetary gear inputs, and ductile iron housing, all of which provide unmatched ruggedness.

• 100% Hardened Steel Components

• Oversized, single-piece pinion provides a robust solution capable of 300% momentary shock-load.

Torque

Up to 159,983 Ib•in (18,076 N•m)

Output Diameter

1in to 4-15/16in (Hollow & Solid Shaft)

Ratio Range

11:1 up to 26,000:1 and greater

Input Speed

Up to 4,000 RPM

Planetary Servo Gearboxes

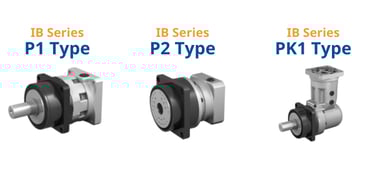

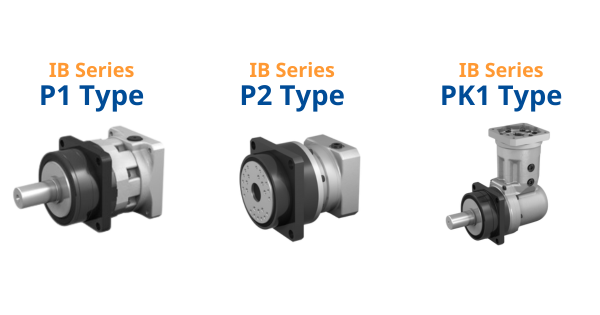

IB Precision Servo Gearbox Series

Low Backlash, Low Torque for Precise Movements

This series of low backlash planetary servo gearboxes are precision units with backlash between 3 and 15 arcmin. These incredibly compact and quiet reducers have a large torque range and can allow maximum input speeds up to 6000 rpm. Large diameter precision angular contact ball bearings supporting the output shaft, allow large radial loads

• Maintenance-Free for Life

• Simple Motor Assembly with Clamp Ring
