Cycloidal Gearboxes
Cycloidal gearboxes are a specialized type of gear system characterized by their distinctive design and operational principles. Unlike traditional gear mechanisms, cycloidal gearboxes utilize a cycloidal disk that moves in a cycloidal motion to transfer motion and power.
This unique approach to power transmission offers several advantages, including high precision, low backlash, and the ability to withstand high loads, making them particularly suitable for applications requiring precise control and durability.
Torque
Nominal: Up to 12,000 N•m (106,209 lb•in) / Acceleration: Up to 30,000 N•m (265,522 lb•in)
Diameter
Up to 138 mm (Hollow Bore)
Ratio Range
29:1 to 283:1
Input Speed
Up to 10,260 RPM

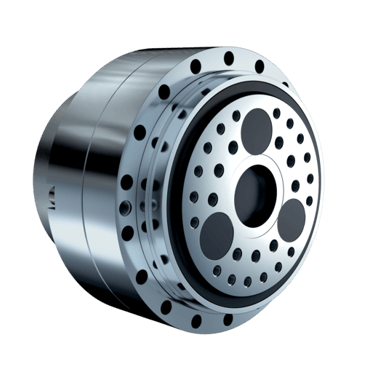

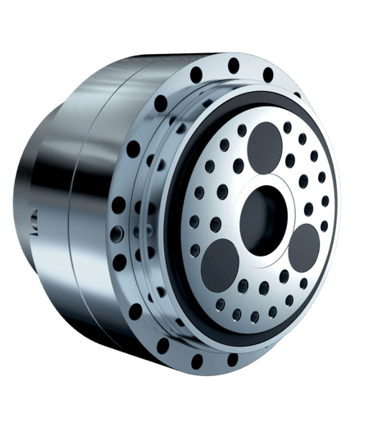

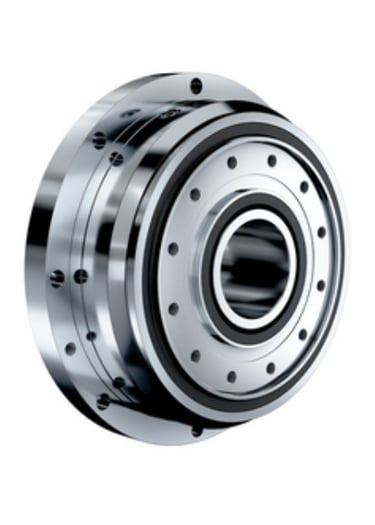

Fine Cyclo DA-Series
High precision gearbox with highest torque density in a single-stage
Angular contact ball bearings are directly integrated into the gearbox housing.
Improved design providing very accurate motion quality and increased torque density and bearing capacity.
Highest torque density in a single-stage unit
Ideal for robotic applications
Hollow shaft possible
Fully sealed modular version with motor adapter and clamp ring available
