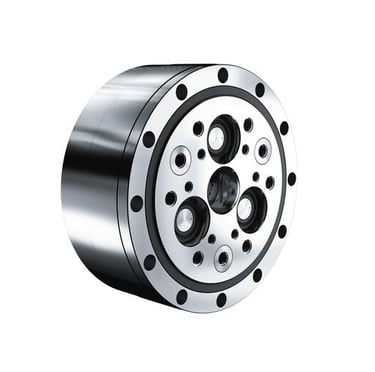

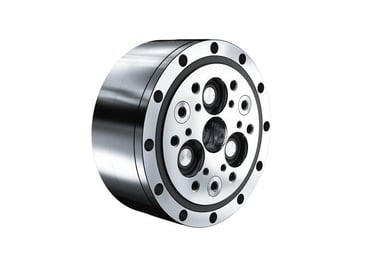

Fine Cyclo T-Series

Double stage high-precision gearbox

• Spur gear pre-stage and three eccentrics provide highest transmission accuracy, minimum speed ripples and minimum vibration.

  With an optimized profile of the disc lobes, this exceptionally low-vibration gearbox reaches a very high transmission precision, and provides a high degree of efficiency even in the low speed range.

  • Less than 0.5 arcmin Lost Motion

  • Ideal for traverse movement applications

  • High input and output speeds possible

  • Integrated tapered roller bearings on output

  • Motor connection with keyway or clamping system on request

  • Motor adapter on request

  Variants:

  • F2C-T cylindrical housing

  • F2CF-T flange housing
