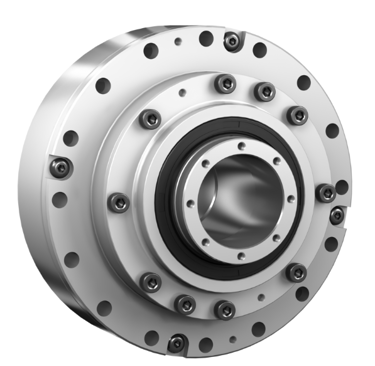

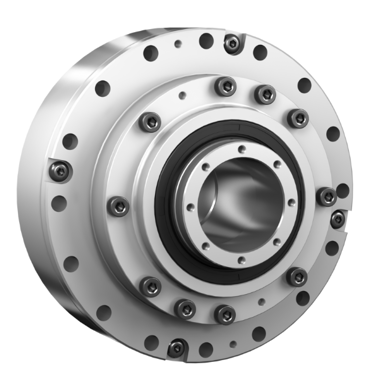

Elastic Cyclo - ECY

Shaft gear units with high rigidity for use in the smallest installation spaces

• High precision shaft gear with output flange and high rigidity

  The new E CYCLO series features high rigidity due to its internal roller bearings. This is significantly higher when compared to the competition. Therefore, the E CYCLO can achieve higher performance in a smaller design envelope and thus lower costs.

  • High Rigidity

  • Lost Motion 1.0 arcmin

  • Transmission error 0.75 arcmin

  • Maximum drive speed up to 8500 rpm

  • Permissible torques up to 284 Nm

  • Radial loads up to 2050 N

  • Axial loads up to 3000 N

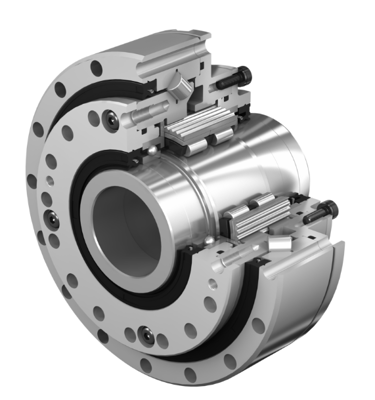

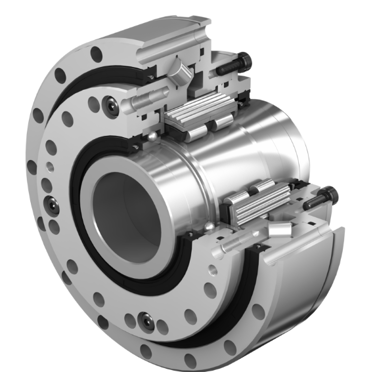

  • Completely sealed including cross roller main bearing
