Strain Wave Gearboxes represent a specialized category of gear systems that leverage the mechanics of elasticity and harmonic distortion to transmit power with high precision.

This unique operation enables strain wave gearboxes to offer significant advantages in terms of high reduction ratios, compactness, and near-zero backlash, making them ideally suited for applications requiring precise control and reliability..

Torque

Nominal: Up to 67 N•m (6.8 kgf•m) / Acceleration: Up to 284 N•m (29.0 kgf•m)

Diameter

Up to 25.5 mm (Hollow Bore)

Ratio Range

29:1 to 283:1

Input Speed

Up to 8,500 RPM

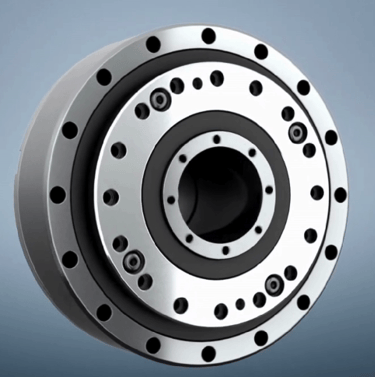

Elastic Cyclo (ECY)

High Precision Shaft Gear with Output Flange & High Rigidity

Compact Zero-Backlash Gearbox blending traditional strain wave reduction and cycloidal engagement technology. The ECY precision gearboxes were created using a trochoid tooth design similar to our Cyclo® for zero-backlash applications.

The ECY features a highly compact design to achieve excellent torque density.

The torsional stiffness is approximately twice that of the general strain wave gear competitor. The ratcheting torque (safety in the event of an overload) is much higher due to our inclusion of the cycloidal tooth design, which is unique to the market.
